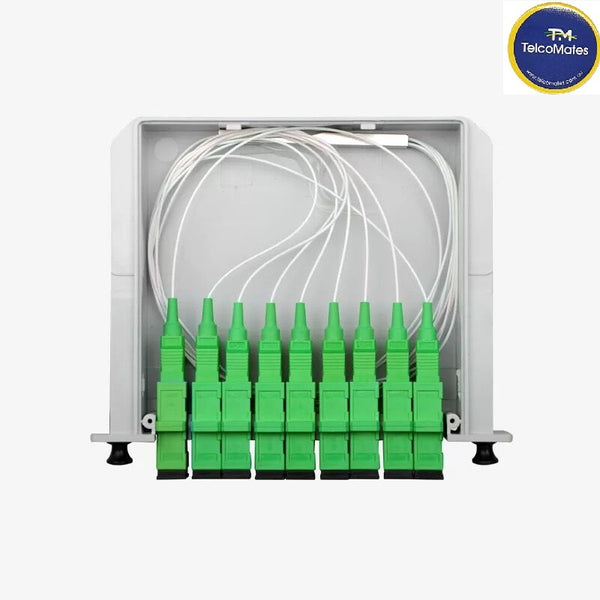

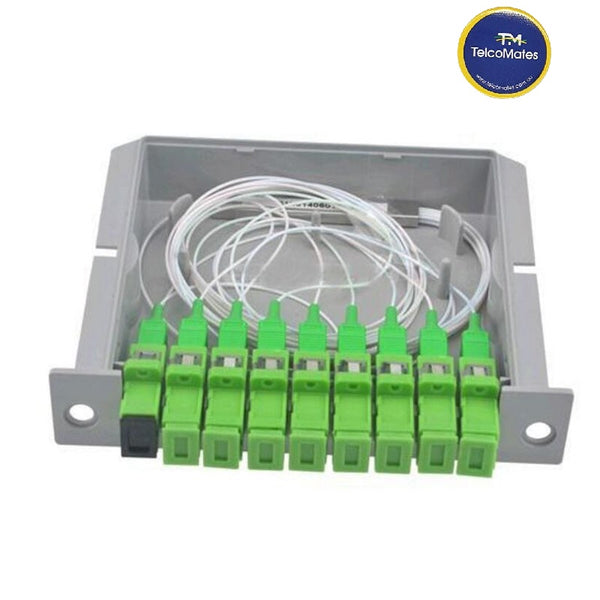

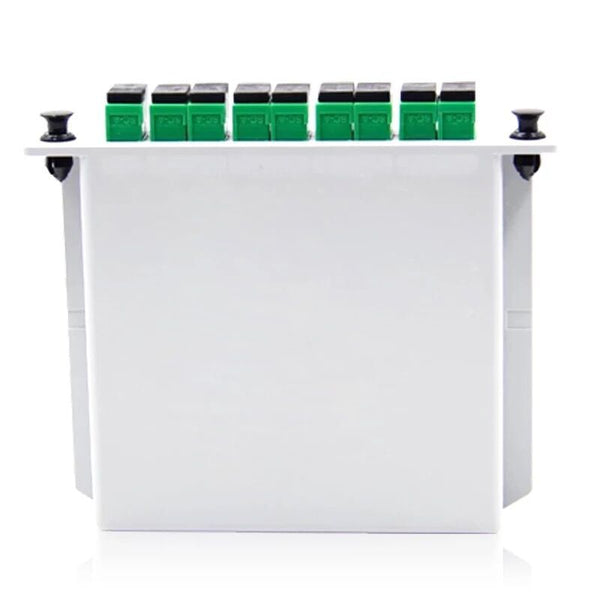

A robust, box-housed 1x8 PLC fibre optic splitter with SC APC connectors — designed for distributing a single fibre signal to up to 8 subscriber endpoints in NBN, Telstra, and Optus passive optical network (PON) deployments.
Unlike pit-mounted SMP/MPT splitters used in the NBN access network, this compact box splitter is ideal for indoor or enclosure-based distribution in MDU buildings, commercial premises, and enterprise FTTB/FTTP installations. SC APC connectors (angled physical contact) ensure minimal back-reflection for optimal PON performance.
- Split ratio: 1 input x 8 outputs (1x8)
- Connector type: SC APC (green) — input and all output ports
- Technology: PLC — uniform splitting with low insertion loss
- Mode: Single Mode (SMOF)
- Typical insertion loss: ≤10.5 dB per output port
- Operating wavelength: 1260–1650nm
- Housed in protective ABS box — suitable for indoor rack or wall installation
- Brand New | Sent by Australia Post
Also available: 1x2 SC APC Splitter and 1x8 SMP Splitter for NBN pit installations.
