10G PON power meter is suitable for the G/EPON, XG(S)PON/10GEPON and overlay RF video signal power testing. It can simultaneously measure the voice, data and video signals on 1490nm/ 1550nm/(downlink) and 1270nm/1310nm (burst mode uplink) optical fibre.The 3.5inch touch screen displays the signal power of each of the 5 wavelengths. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyse whether the signal power is meet the standard by threshold data.

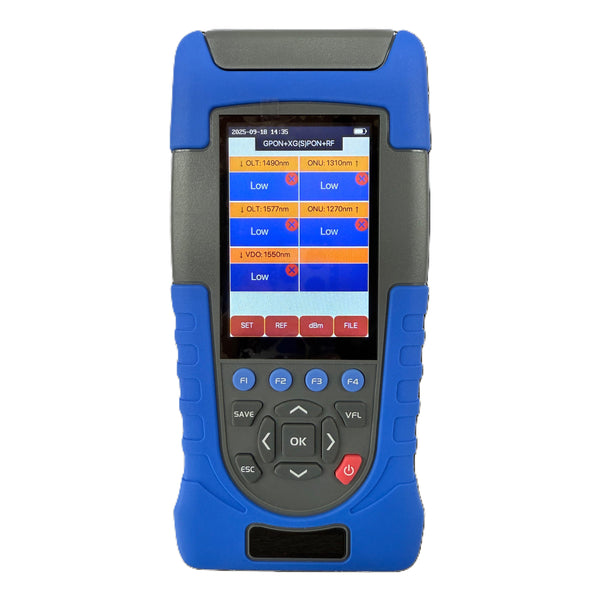

- 3.5 inch colour touch screen LCD
- Applicable to GPON&XG(S)-PON, EPON&10G-EPON
- and RF CATV co-existence PON network
- 5 wavelength power value simultaneous measurement
- and display (1490nm/1550nm/1577nm/1310nm/1270nm

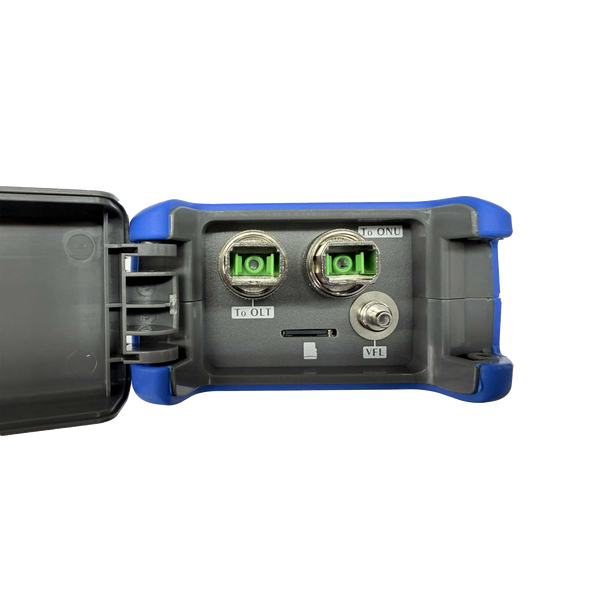

- Built in 10mw VFL function
- Long glowing rogue ONU alarm and detection
- User defined Pass/Fail threshold
- Support USB Type-C charging and test data upload
- Support Powerful PC software to generate the test report
