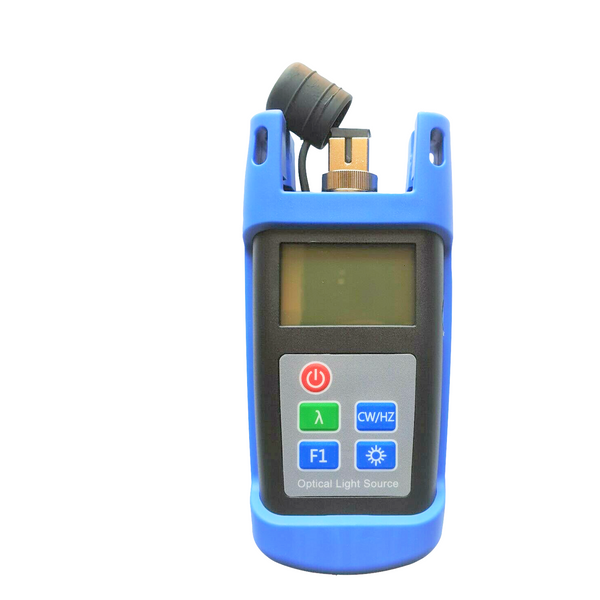

Mini Optical Light Source(1310+1550nm)

Regular price $239.00

Our compact mini Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths.It is the perfect complement to the our compact mini Power Meter when it comes to measuring attenuation on fibre-optic links.


Features:



  1. Pocket size design
  2. LED flashlight for night working or working in darkness
  3. Highly accurate unit offering 6 calibrated wavelengths
  4. Interchangeable connectors
  5. Durable and reliable design
  6. Easy-to-use interface for error-free testing
  7. Rubber armor protection

Specifications



Wavelength(nm)

1310+1550nm

Typical Output Power

-5dB

Optical Connector

FC+SC+ 2.5mm universal

Power Supply

Alkaline Battery(2 AAA 1.5V batteries)





Output Stability

±0.05dB/15mins; ±0.1dB/ 8hours





Modulation Frequencies

CW,270Hz,1KHz,2KHz





Dimensions / Weight

130x65x35mm / 180g
