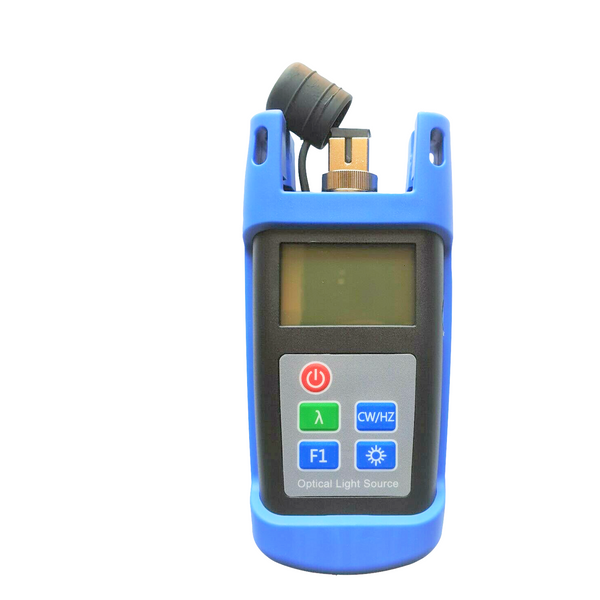

Our compact mini Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths.It is the perfect complement to the our compact mini Power Meter when it comes to measuring attenuation on fibre-optic links.
Features:
- Pocket size design
- LED flashlight for night working or working in darkness
- Highly accurate unit offering 6 calibrated wavelengths
- Interchangeable connectors
- Durable and reliable design
- Easy-to-use interface for error-free testing
- Rubber armor protection
Specifications
|
Wavelength(nm) |
1310+1550nm |
|
Typical Output Power |
-5dB |
|
Optical Connector |
FC+SC+ 2.5mm universal |
|
Power Supply |
Alkaline Battery(2 AAA 1.5V batteries) |
|
|
|
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|
|
|
|
Modulation Frequencies |
CW,270Hz,1KHz,2KHz |
|
|
|
|
Dimensions / Weight |
130x65x35mm / 180g |

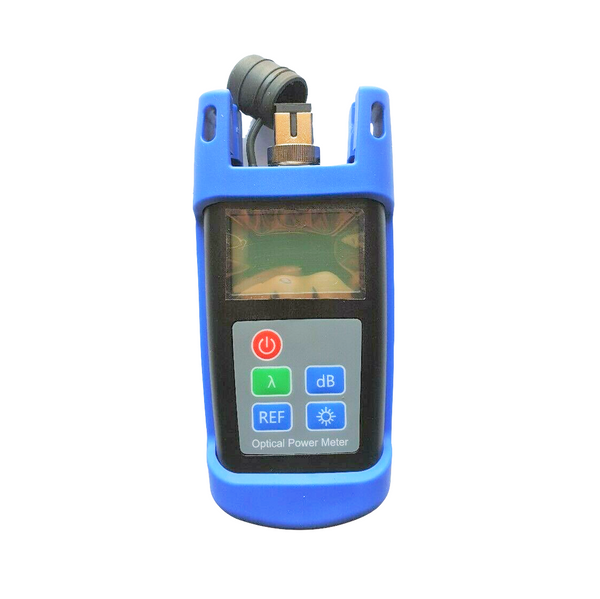

Our compact Power Meters provides highly accurate power measurements, as well as reference value
setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.
Features:
- Pocket size design
- Highly accurate unit offering 6 calibrated wavelengths
- Interchangeable connectors
- Durable and reliable design
- Easy-to-use interface for error-free testing
- Rubber armor protection
- Flashlight function for night working
Specifications:
| Wavelength(nm) | 800~1700nm |
| Measurement Range | -70+3dBm / -50~+26dBm |
| Optical Connector | FC+SC+ 2.5mm universal |
| Power Supply | Alkaline Battery(2 AAA 1.5V batteries) |
| Display Units | dB / dBm / w |
| Resolution (dB) | 0.01 |
| Dimensions / Weight | 130x65x35mm / 180g |
Standard Accesories:
| Item | Quantity |
| User guide | 1 |
| Certificate of Qualified | 1 |
| FC Connectors | 1 |
| SC Connectors | 1 |
| Gurantee card | 1 |
| Soft carry bag | 1 |
