7 Inch PON OTDR - Multi-Function Fibre Tester with OPM VFL LS

Regular price $3,900.00

Tax included.

 7 Inch PON OTDR

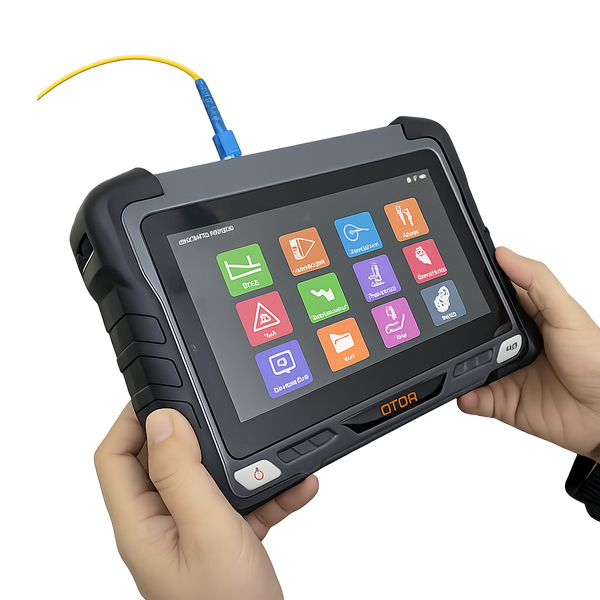

A professional-grade 7 inch touchscreen PON OTDR designed for NBN and FTTH fibre network testing. Packed with multi-function tools in a single rugged unit, it is ideal for field technicians working on fibre installation, maintenance and fault finding.

Key Features

  • 7 inch colour LCD touchscreen (800x480 resolution)
  • Detects up to 1:64 splitter networks
  • Single Mode (SM) and Multi Mode (MM) options available
  • Multi-wavelength options including 1310nm, 1490nm, 1550nm, 1625nm and 1650nm

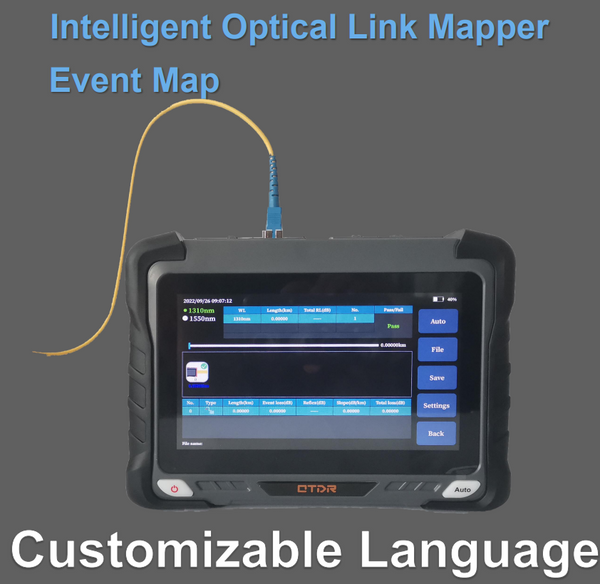

  • iOLM Intelligent Optical Link Mapper with Event Map

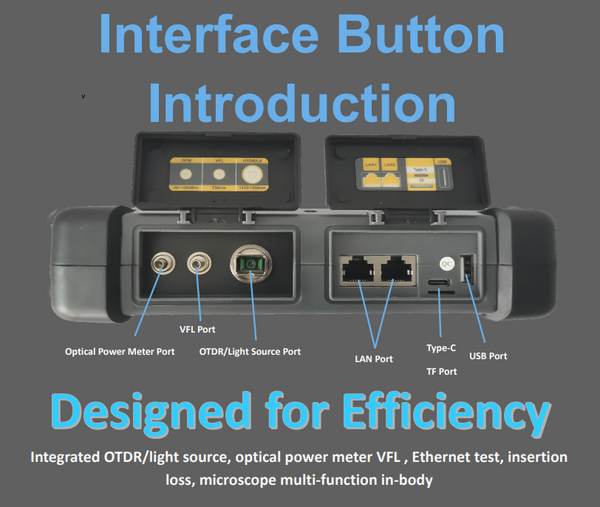

  • Built-in OPM (Optical Power Meter), VFL (Visual Fault Locator) and Light Source
  • Ethernet test including RJ45 cable test, link speed, cable length and line sequence
  • Remote test capability
  • Dust proof and water proof
  • 1.5 metre drop test rated (shock resistance)

OTDR Specifications

  • Dynamic Range: up to 45/43 dB (model dependent)
  • Event Blind Zone: as low as 0.5m
  • ATT Blind Zone: as low as 3.5m
  • Test Range: 100m to 420km
  • Sample Points: 256k+
  • Loss Resolution: 0.01 dB
  • Loss Accuracy: +/- 0.03 dB/dB
  • Ranging Accuracy: +/- (0.75m + sample interval + 0.0025% x test distance)
  • File Format: SOR standard format

Optical Power Meter

  • Wavelength Range: 800nm to 1700nm
  • Test Scope: -50 dBm to +26 dBm
  • Calibration Wavelengths: 850/980/1300/1310/1490/1550/1625/1650nm

VFL

  • Wavelength: 650nm
  • Output Power: 10mW+
  • Mode: CW / 1Hz / 2Hz

General Specifications

  • Display: 7 inch colour LCD touchscreen
  • Battery: 3.7V, 10,400mAh lithium
  • Internal Storage: 2GB (200,000 curves)
  • External Storage: up to 64GB
  • Connectivity: USB-A, Type-C, RJ45 LAN (10/100 Mbit/s)
  • Operating Temperature: -10 to +50 degrees C
  • Weight: 1.2 kg
  • Dimensions: 215mm x 160mm x 50mm

Report Output

Test reports can be generated in PDF, SOR and JPG formats directly from the unit.

Includes

  • ST3200H OTDR unit with battery
  • AC/DC adapter
  • USB drive with analysis software and user manual
  • Touch pen, data cable
  • OTDR SC adapter and OPM SC adapter
  • Calibration certificate and warranty card
  • Cleaning cotton pieces (x10)
  • Instrument backpack
